Primary & Secondary Testing

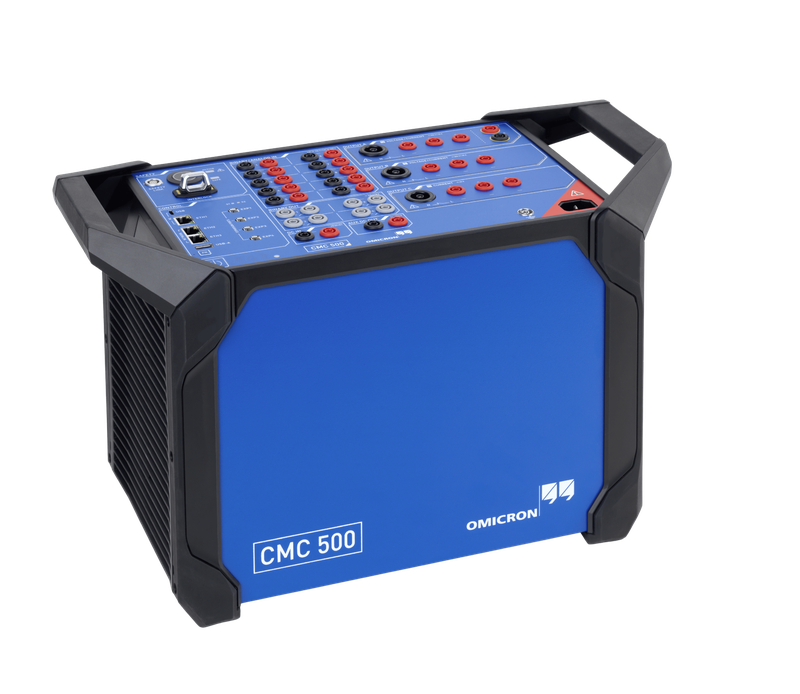

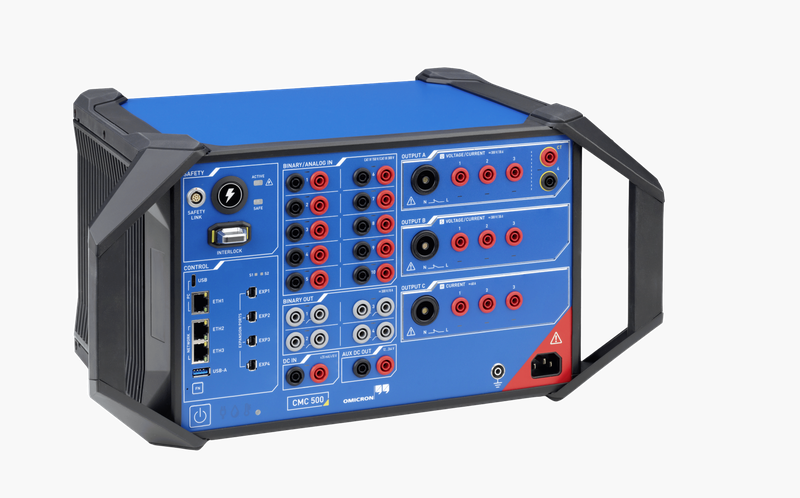

The CMC 500 is a modular, multi-phase protection relay test set designed for testing and commissioning protection relays, from conventional electromechanical relays to the latest IEC 61850-based digital intelligent electronic devices (IEDs).

Its flexible hardware architecture, high-performance current and voltage outputs, and comprehensive software ecosystem provide a versatile solution for protection testing, commissioning, and maintenance applications.

The CMC 500 also supports primary injection up to 450 A, current transformer and circuit breaker testing with the appropriate software and options, and reusable commissioning test plans for maintenance, post-event verification, and firmware upgrades.

Key Features

• Modular hardware architecture for a wide range of protection testing and commissioning applications
• Primary injection capability up to 450 A in the UHH configuration for wiring verification and high-current testing
• Advanced IEC 61850 communication for digital substation testing
• Comprehensive software ecosystem for protection testing, commissioning, troubleshooting, and test result analysis
• Reusable automated test plans for maintenance and commissioning workflows
• Enhanced user safety with operational status indicators, an INTERLOCK key, and an interface for external emergency switching-off buttons, reducing electrical hazards during commissioning, troubleshooting, and maintenance
• Cybersecurity by Design, including a secure cryptoprocessor, certificate-based device authentication, and encrypted communication, backed by a secure software development life cycle

CMC 500 is the successor to the CMC 356, offering enhanced flexibility, performance, and expanded testing capabilities.

Download the Product Brochure for more information.

The CT Analyzer is a lightweight, multifunctional instrument for testing current transformers (CTs). It measures excitation characteristics, ratio and phase displacement, polarity, winding resistance, and burden impedance.

Key Features:

• High measurement accuracy for on-site calibration: typical ratio error of 0.02% for ratios up to 2000 and typical phase displacement accuracy of 1′
• Compact and lightweight (8 kg / 17.4 lbs, excluding accessories) for easy transport
• Automatic assessment according to IEC, IEEE, and customized or local standards, depending on the selected testing package
• Fast automatic testing, with test duration of less than 1 minute
• Low test voltage of up to 120 V for enhanced workplace safety
• Integration into testing routines via Remote Interface Control

Download the Product Brochure for more information.

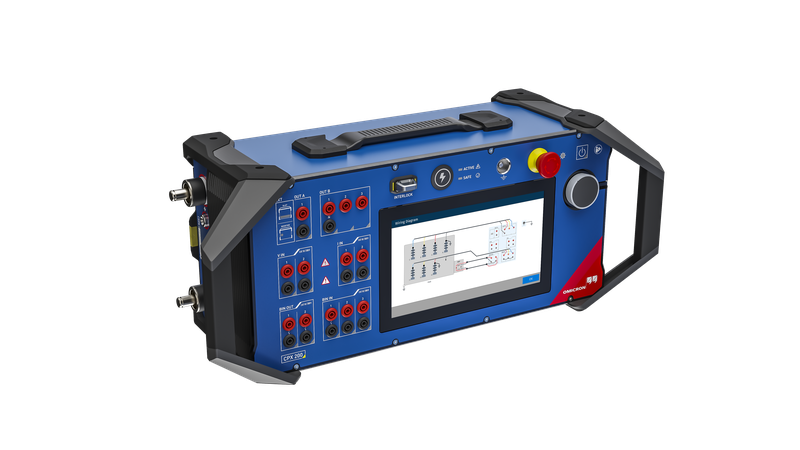

Compact, powerful, and designed with safety in mind. The CPX 200 brings next-generation capabilities to multifunctional testing.

Designed and tested to internationally recognized industry and cybersecurity standards, it supports commissioning, maintenance, and condition assessment of medium- and high-voltage assets. Whether you're commissioning substations or diagnosing equipment, the CPX 200 delivers precise measurements and reliable results.

From hardware and software to accessories, every element is engineered to work together, delivering versatile testing capabilities, long-term durability, and value for your investment.

Key Features:

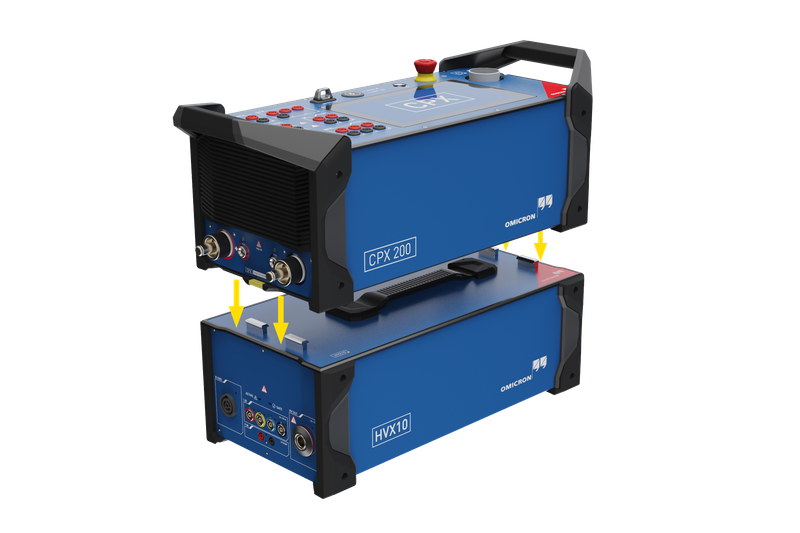

• Powerful outputs: up to 1000 A AC/DC with the High Current Module and 10 kV AC/DC with HVX10
• Wide testing frequency range: 1–600 Hz, plus DC testing
• Built-in safety features: signal lights, emergency stop button, and interlock key
• Versatile testing of power transformers, instrument transformers, and circuit breakers
• Easy touchscreen operation and automatic test reports
• Smart software: CPXpert for guided testing and automated assessment, CORTEX Grid for cloud-based data management
• Compact and portable: under 30 kg including the High Current Module and HVX10

Download the Product Brochure for more information.

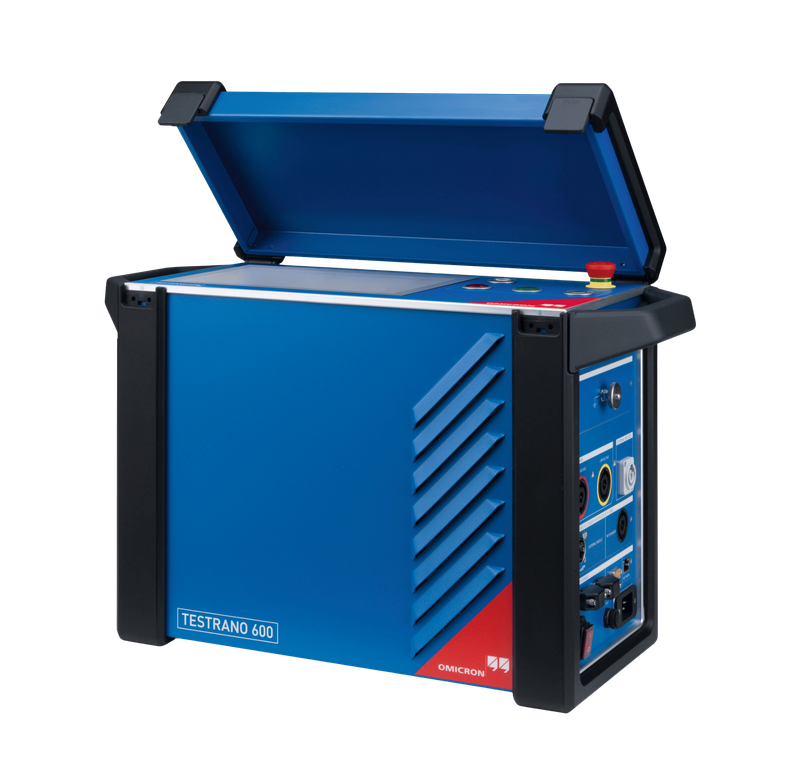

TESTRANO 600 is a portable, three-phase test system for routine and diagnostic testing of single- and three-phase power and distribution transformers, on-site or during factory acceptance tests. Its three-phase capabilities significantly reduce rewiring and can cut testing time to one-third compared to conventional single-phase test sets.

Key Features

• True three-phase testing, with simultaneous energization of all three phases
• Powerful outputs: 3 × 33 A DC or up to 400 V AC line-to-line
• Up to three times faster testing, with the same connections used for multiple tests
• Built-in safety features, including an emergency stop button, safety and warning lights, and automatic active winding discharge
• Custom-designed connector plugs and color-coded cables to minimize connection errors
• Flexible operation via Primary Test Manager™ (PTM) software on a laptop or optional TESTRANO Touch Control, with the PTMate app providing additional on-site support
• Compact, integrated design weighing approximately 20 kg for easy transport

Download the Product Brochure for more information.
